Metal Case 12V constant Voltage Constant Current Power Supply 8.3A 120W

Product Categories

ZHUHAIJ-STAR LED MANUFACTORY LIMITED.

Contact Now

Name: Metal Case 12V constant Voltage Constant Current Power Supply 83A 120W
Brand: J-STAR
Price: 1 USD

Model Number : JSPL-100-12

Brand Name : J-STAR

Certification : CE ROHS SAA CB

Place of Origin : CHINA

Cooling way : Nature self-cooling

Material : Aluminum case

Type : Constant Voltage 12V

Rated Power : 100W Max

Contact Now

Metal Case 12V Constant Voltage Constant Current Power Supply 8.3A 120W

AC/DC 12V LED switch power supply 12V 8.3A power supply metal case 120W Transformer SMPS for cctv camera and led light

Product Description

12V 8.3A Technical Specification
Model No.	JSPL-100-12
Input	Voltage	AC 100-240V Worldwide
	Vibration Input Voltage Range	AC 95-265V
	Frequency	50-60Hz
Output	Voltage	DC 12V
	Current	8.3A
	Power	100W
	Typical Efficiency	73%
	Adjustable Range of Voltage	DC 12V-12.5V
	Max. Ripple & Noise	250mV
Protection	Over Load	105-115% of Rated Output Power
	Short Circuit	Protection Type: Auto Recovery
Electric Strength	High-pot test	3KV AC
Environment	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	20°C~+85°C,10~95%RH
	MTBF	>200K hrs.@25°C(MIL-HDBK-217F)
Warranty	2 year

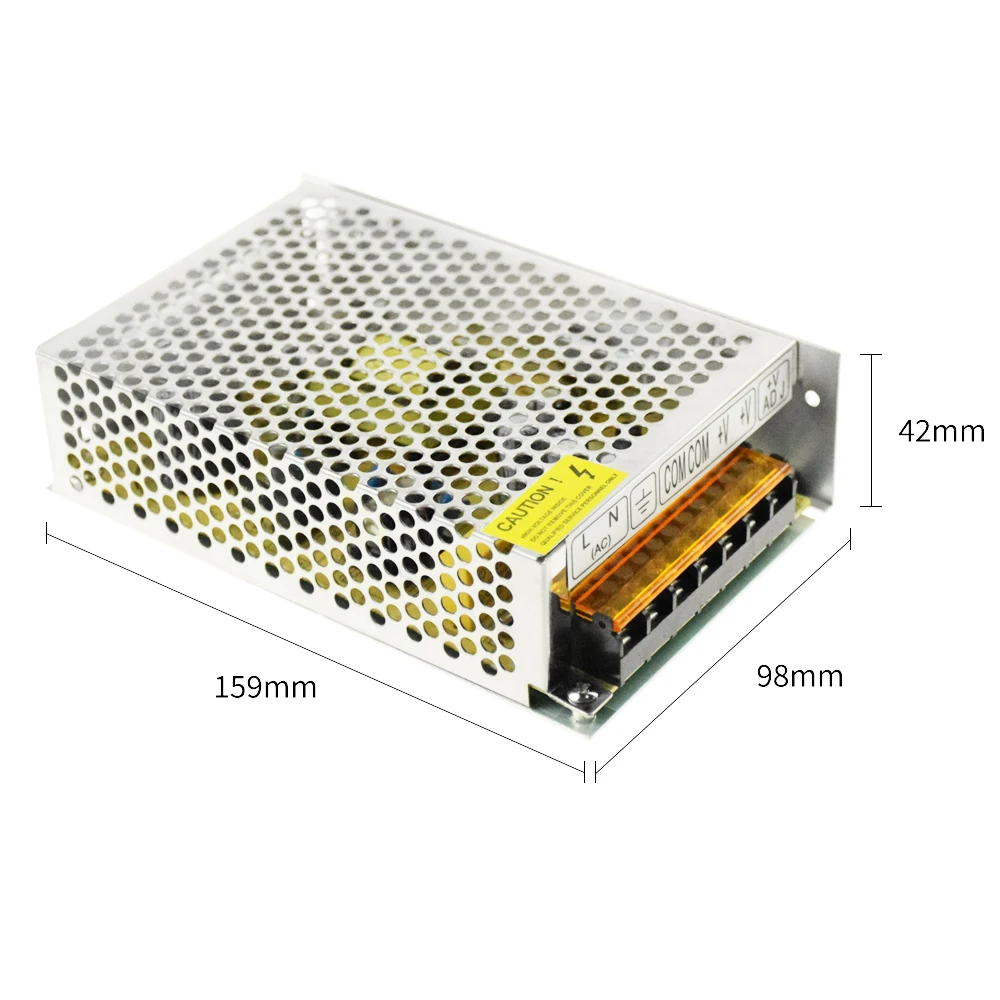

Feature	Dimension(LWH)	1599842mm
	Weight	345g
	Inner box size	16510346mm
	Inner box weight	29G
	PCS/CTN	50 PCS/CTN
	CTN size	532643cm
	GW/CTN	20kg
Safety & EMC	Safety Standards	EN55015/EN61000-3-2/EN61000-3-3

Metal Case 12V constant Voltage Constant Current Power Supply 8.3A 120W

Application

Metal Case 12V constant Voltage Constant Current Power Supply 8.3A 120W

Packaging & Shipping

Safe packing, brown box or color box packing can be customize

Metal Case 12V constant Voltage Constant Current Power Supply 8.3A 120W
